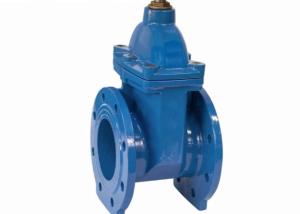

Epdm Seat Pn16 Flange End Gate Valve Ductile Iron Industrial Control Valves

Name: Epdm Seat Pn16 Flange End Gate Valve Ductile Iron Industrial Control Valves
Brand: junxi
Price: 1 USD

Brand Name : junxi

Place of Origin : hebei

MOQ : Can discuss

Price : Can discuss

Payment Terms : L/C, T/T

Supply Ability : 1000

Delivery Time : 15~25

media : Water,Oil,Gas

Power : Manual,Handwheel Operated,electric,Gear Operated

Structure : metal Gate Valve

Port Size : DN40-DN1000

Material : Stainless Steel 304/306l

Pressure : PN16

Contact Now

gate valve pn16 flange end ductile iron

Specification Details

Design Std:EN 1171

Size:DN40--DN1000

Pressure Rating: PN16,PN10

Seat: NBR,EPDM, VITON,PTFE,NEOPRENE

Face to Face: EN 558 Series 14(DIN 3202 F4)

Pressure Testing:DIN EN593/DIN EN12266-1

Body/Bonnet: Ductile iron EN-GJS-500-7/EN 1563

Flange Ends: DIN EN1092-2/Type B

Working temperature:-10 to +120℃

Gate Valve:

Standard	DIN 3352-F4 ,DIN 3352-F5, BS5163, AWWA C509 ,AWWA C515 Flange drilling is according to DIN2501, BS4504 and ANSI B16.1 PN10,PN16,PN25
Type	Flanged End , Socked End ,Mechanical Joint, non rising stem / rising stem
Material	Body: Ductile iron GGG40/50 or Cast IronGG25 Wedge : Ductile iron GGG40/50+EPDM/NBR or metal seated Stem: stainless steel 2Cr13 , SS304,SS316 Bolt and Nuts : Carbon Steel with zinc plated or SS304,316
Coating	Internal and external with fusion bonded epoxy coating min250μm

Design Feature

1: Full bore or reduced bore
2: Two-Piece downstream sealing
3: Fire safe design(API 607)
4: Blowout-proof system
5: Anti-static design
6: Fugitive emission testing(optional)

Epdm Seat Pn16 Flange End Gate Valve Ductile Iron Industrial Control Valves

Product Tags:

pn16 flange end gate valve

epdm seat flange end gate valve

ductile iron gate valve pn16

China Epdm Seat Pn16 Flange End Gate Valve Ductile Iron Industrial Control Valves wholesale

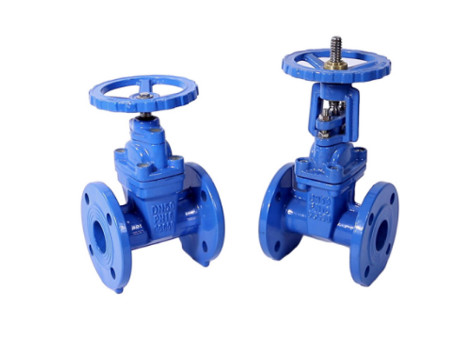

Epdm Seat Pn16 Flange End Gate Valve Ductile Iron Industrial Control Valves Images
